Cisco Webex Room Kit Plus A Powerful Collaboration Solution for Medium to Large-sized Meeting Rooms

Cisco Webex Room Kit Plus A Powerful Collaboration Solution for Medium to Large-sized Meeting Rooms

Webex™ Room Kit Plus delivers the unmatched video and audio experience customers have come to expect from Cisco. In addition, new capabilities enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations – further removing the barriers to usage and deployment of video in medium to large-sized rooms.

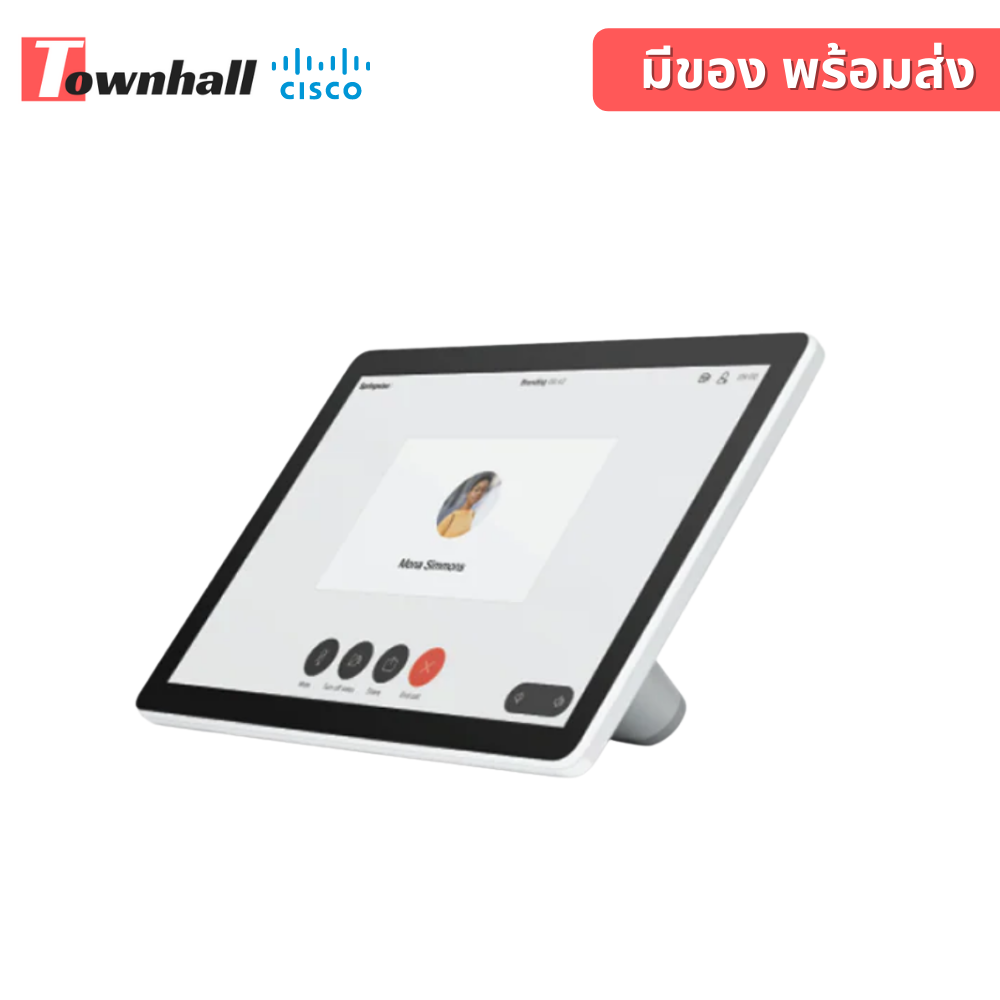

The Room Kit Plus – comprising a powerful codec, a quad-camera bar with integrated speakers and microphones* and the intelligent Room Navigator control panel – is ideal for rooms that seat up to 14 people. It offers sophisticated camera technologies that bring speaker-tracking and auto-framing capabilities to medium to large-sized rooms. The product is rich in functionality and experience but is priced and designed to be easily scalable to all of your conference rooms and spaces – whether registered on the premises or to the Webex cloud service.

●      Smart meetings: Powerful, integrated cameras deliver intelligent view capabilities, such as automatic framing and speaker tracking; automatic noise suppression reduces meeting disruptions

●      Smart presentations: Dual screens, dual content sources, wireless sharing, and 4K content make for great presentations

●      Smart rooms: People count for usage metrics and resource allocation; tight integrations with screens to enhance user interactions; APIs and macros allow meeting personalization

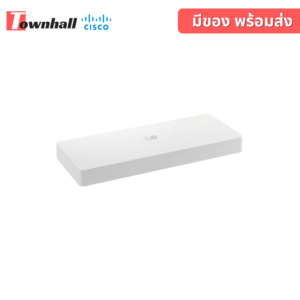

●      Audio-visual integration: The Codec Plus is an entry-level integrator codec, supporting third-party audio systems. Control systems can use RS-232 with a USB adapter, or SSH.

●      Registration flexibility: Built for both cloud and on-premises deployment, protecting your investment

รายละเอียดสินค้า

Software compatibility

      ●  Cisco Collaboration Endpoint Software Version 9.14.5 or later, or Webex RoomOS

Camera overview (Quad Camera)

      ●  (4) 5K CMOS sensors with machine intelligent switching; providing single HD output at 1080p

      ●  Support up to 60 fps

      ●  15.1 MP image sensor

      ●  1/1.7 CMOS

      ●  5x digital zoom (3 tele-lenses each with 50° horizontal field of view)

      ●  f/2.0 aperture

      ●  83° horizontal field of view; 51.5° vertical field of view

      ●  Auto-framing (audio + face detect)

      ●  5120 x 2880 pixel resolution

      ●  Auto focus, brightness, and white balance

      ●  Focus distance 1 m to infinity

Camera overview (SpeakerTrack 60)

      ●  1920 x 1080 at 60 frames per second (fps)

      ●  10x optical zoom, 2x digital zoom, 20x zoom combined

      ●  Pan range: +/-100 degrees, Tilt range: +/-20 degrees, Tracking horizontal FoV: 80 degrees

      ●  Focus distance 1.0m to infinity (wide)

      ●  F-value 1.5

      ●  Manual or automatic to do focus, white balance, and brightness

Audio features

      ●  High-quality 20 kHz audio

      ●  Subwoofer line out for Quad Camera

      ●  Prepared for inductive loop (line out)

      ●  Automatic Gain Control (AGC)

      ●  Automatic noise reduction

      ●  Active lip synchronization

Dual stream

      ●  H.239 (H.323) dual stream

      ●  Binary Floor Control Protocol (BFCP) (SIP) dual stream

      ●  Support resolutions up to 3840 x 2160p5 (4Kp5),1080p30 and 720p60

Wireless sharing

      ●  Webex App (up to 3840 x 2160p5)

      ●  Cisco Intelligent Proximity client (up to 1920 x 1080p5)
